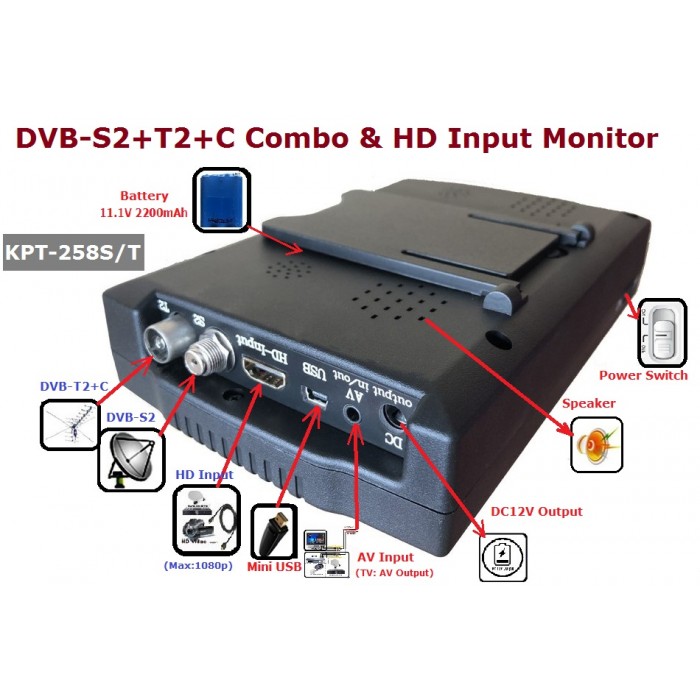

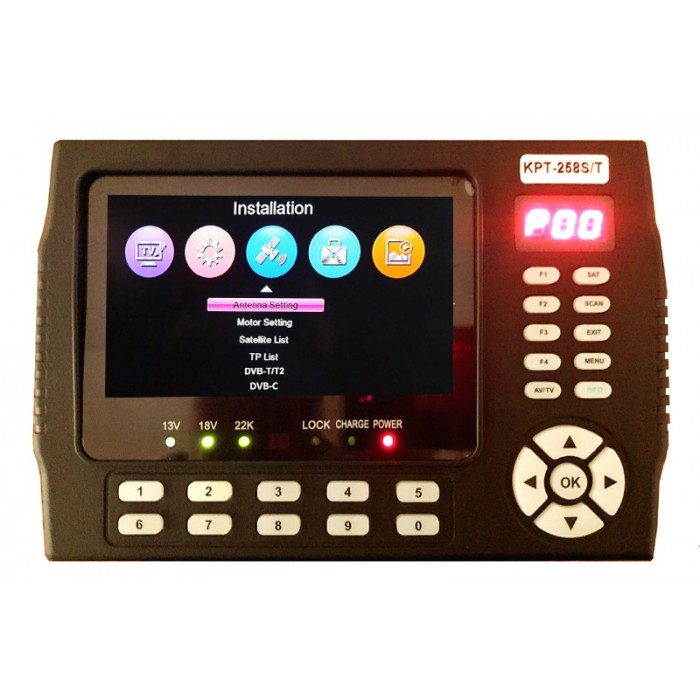

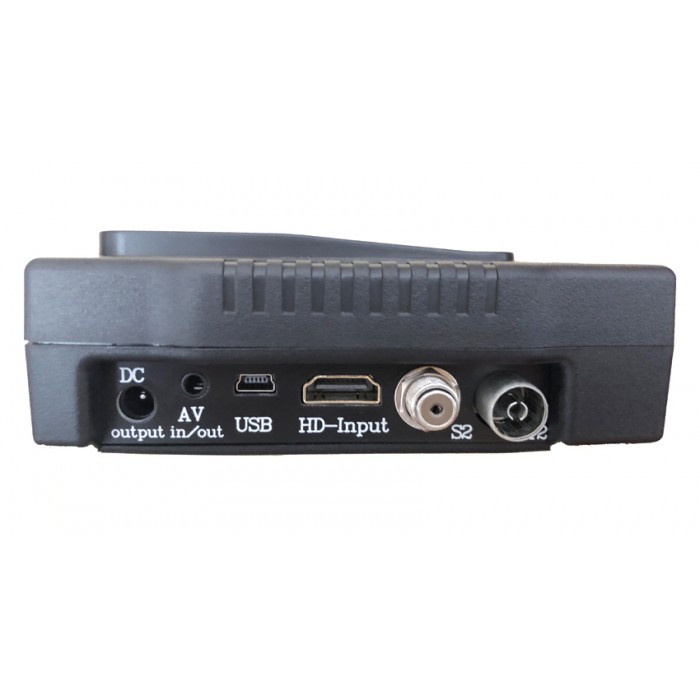

KPT-258S/T

¤4.3”Inch IPS (800*480HD) High definition TFT LCD Screen which Can Play Channels(DVB-S/S2+T/T2+C )

 < Support DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>

¤DVB-S2+T2+C Combo Receiver;Live FTA Digital Picture and Sound.

¤With DC12V power output to CCTV

More detailsInquiry


1.Satellite finder

DVB-S/S2  < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤DiSEqC:1.0, 1.1, 1.2, USALS   Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

DVB-T/T2 :  <DVB-T and DVB-T2 standard>

Frequency range: VHF-H 174-230MHz, UHF 470-860MHz

Demodulation:QPSK, 16QAM, 64QAM,256QAM

Bandwidth:6、7、8MHz

DVB-C:  <DVB-C standard>

Frequency range: 115~858MHz ;

Symbol Rate(Kbps):Modify according to local country information

Demodulation:16QAM, 32QAM, 64QAM,128QAM,256QAM

2.HD Input:

Support 800*480 to Max 1920*1080 (Max:1080P)

3.AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio & DC12V power test

¤AV Input (Video&Audio Input Monitor)

¤4.3IPS high-resolution digital display LCD    ¤Dots pixels:HD 800*480(800*480Pixes)

¤Color system: PALNTSC    ¤Battery indicator light show

¤Lithium battery: DC 11.1V  2200mAh(build-in)     ¤Input voltage:DC13.5V  1A
